PdfTableDraw(tblHandle As Integer, x As Double, y As Double, maxHeight As Double) As Double

Draws the table at the given position into the pdf object.

Parameters:

Name	Type	Description
tblHandle	Integer	The identification number (handle) of a table, obtained from the PdfTableCreate function.
x	Double	x-coordinate (horizontal position)
y	Double	y-coordinate (vertical position)
maxHeight	Double	The specified value represents the maximum height of the table on a page. If the specified height exceeds, then the table breaks to a next page. To avoid page breaks, specify a value of 0.0

Returns:

Type	Value	Description
Double	>= 0.0	If the function succeeds the return value is the height of the table that was drawn so that additional contents can be drawn below the table if necessary.
	-1	If the function fails then the return value is -1.

Available in:

WindowMain	WindowLink
YES	YES

Used in:

XojoScript Name	GUID
Create Seminar Invoice With Slip As PDF	739DA58E-17EE-41CE-BB54-E7362CFE17D4
Create Seminar Invoice As PDF	2C3F7F29-A29A-4338-ACF5-51894B709DA5

Hint: You can find references to XojoScripts which make use of this function by sending the following SQL statement to the database:

Select id,GUID, ScriptName,ScriptCode from im_scripts where ScriptCode Like '%PdfTableDraw%'

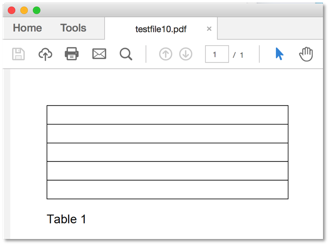

Example XojoScript:

// Create pdf file and add table with 5 rows

If PdfStart("testfile.pdf") > 0 Then

// Set top top-left as 0,0 coordinates

PdfSetPageCoordsTopDown

// Vertical position

Dim y As Double = 30.0

Dim hTbl As Integer = PdfTableCreate(1,1,200.0,9.0)

If hTbl >= 0 Then

// Set outer border

Call PdfTableSetBorderWidth(hTbl,-1, -1, 0.5, 0.5, 0.5, 0.5)

// Set inner gridlines

Call PdfTableSetGridWidth(hTbl, 0.5,0.5)

// Add 5 rows of 15.0 points row height

Call PdfTableAddRows(hTbl,5,15.0)

// Draw the table to pdf, at coordinates x=30 y=30

Dim tHeight As Double = PdfTableDraw(hTbl,30.0,y,0.0) // 0.0 = avoid pagebreaks

// Calculate new y position below table

y = y + tHeight + 10.0

End If // hTbl >= 0

// Set output font and color

PdfSetFont("Arial","Regular",10.0)

Call PdfSetFillColor("&c00000000") // black textcolor

// write a text

Call PdfWriteText(30.0,y,"Table 1")

// Finalize PDF

Call PdfCloseFile

// Open PDF in default viewer

Call Pdflaunch

End If // PdfStart("testfile.pdf")
